Guido @DecodeSignals

4 years ago

8195 kHz - Romanian Special Telecommunications Service exchanging zipped test mails between Bucharest and Bacau using MIL-110A / STANAG-5066

1 11 45 0 5

View Details

@geoff_mcmaw Just by looking to the screenshot, it seems to be PACTOR IV with different speedlevels. On this frequency most probably sent by or to Sailmail Radio Brugge. Example with sound: youtube.com/watch?v=zzrjQs…

1 0 1 0 0

View Details

Guido @DecodeSignals

4 years ago

@M0DTS it's showing the traitor

1 0 9 0 0

View Details

Guido @DecodeSignals

4 years ago

@i56578_swl @DF3LZ @ik1yde @shoc_rolf nice catch and great analysis 👍

0 0 1 0 0

View Details

Guido @DecodeSignals

4 years ago

5874 kHz - NATO exercise, Dutch mil voice and text MIL-STD188-110A / FED-STD-1052 Recording: disk.yandex.com/d/3HB5H-H5CRT8…

0 2 10 0 3

View Details

Guido @DecodeSignals

4 years ago

@i56578_swl Perfect analysis, Antonio ! It's still active on other frequencies: 7667 kHz, 6890 kHz, 3845 kHz (usb)

0 0 1 0 0

View Details

Guido @DecodeSignals

4 years ago

11500 kHz - US DoD sending IPv4 packages secured by ESP protocol using MIL-110A and STANAG-4539 with STANAG-5066 Recording: disk.yandex.com/d/hUDEqOrVGP8u…

1 4 44 0 7

View Details

Guido @DecodeSignals

5 years ago

5094 kHz - Polish Mil sending HF mails (HBFTP zip files / MIL-STD188-110A / STANAG-5066 / Harris equipment)

3 4 38 0 0

View Details

Guido @DecodeSignals

5 years ago

@i56578_swl @India_Papa_Golf @W6UNX another DireWolf text at the end of the IQ record. And a small chat with a little bit of Italian: "io ti raggiungo"

0 0 3 0 0

View Details

Guido @DecodeSignals

5 years ago

15896.5 kHz - 1200Bd Packet Radio / AX.25 transmissions with TCP/IP packets during the last days. Callsigns were HQ2CEN and CE4TST. The file header in each transmission is showing a JPEG (JFIF) structure. Recording: disk.yandex.com/d/GvxdEsfYZ3qO…

2 3 27 0 2

View Details

Guido @DecodeSignals

5 years ago

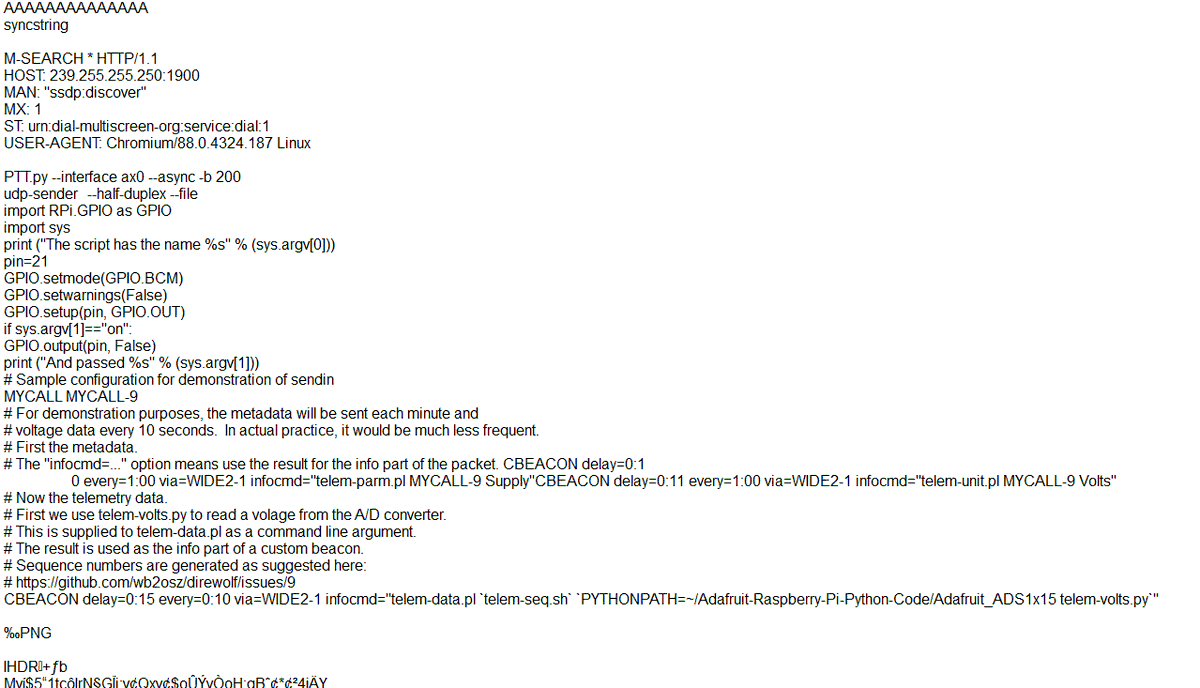

@India_Papa_Golf @W6UNX Thanks for the recordings ! There is some clear text which should help us to identify the transmissions. The first file is about controlling a Raspberry Pi which seems to be used as a beacon, followed by a PNG image

3 0 3 0 0

View Details

Guido @DecodeSignals

5 years ago

@India_Papa_Golf @W6UNX KarapuZ, I see these numbers only as a part of the AX.25 header text but not as IP addresses. The only IP addresses I found were 1.1.1.1 and 1.1.1.2 (also recognized by UZ7HO soundmodem) I'm still trying to extract the complete jpeg file, but I'm only getting broken images...

1 0 2 0 0

View Details

Guido @DecodeSignals

5 years ago

@priyom_org yes, the bytes between marker FF C0 and FF C4 are 00 11 08 01 04 01 5C 03 01 11 00 02 11 01 03 11 01 This would be a resolution of 260x348 px, if I'm not wrong

0 0 3 0 0

View Details

Guido @DecodeSignals

5 years ago

@i56578_swl nice catch, this protocol was also seen some years ago on 10201 kHz, at that time combined with ANDVT modem and clear voice

Guido @DecodeSignals

8 years ago

10201 kHz - Radio checks of callsigns "chieftain madness" and "nomad" (or similar) using voice, STANAG 4197 and MIL-STD188-110A @i56578_swl - The secondary protocol is same like seen here: i56578-swl.blogspot.com/2018/03/unid-3… Recordings: yadi.sk/d/vpwbkPJjDSJ5… yadi.sk/d/o4Y7VdZFsM6h…

2 0 5 0 1

1 0 0 0 0

View Details

Guido @DecodeSignals

5 years ago

4744.5 kHz - Norwegian Navy stations LBJ and 3KD trying to send messages using STANAG-4481-PSK with KG84 encryption. But no success, even after confirming the use of "national crypto" several times. Recording (voice and data): disk.yandex.com/d/EuIP3eksP20O…

1 1 12 0 1

View Details

Guido @DecodeSignals

5 years ago

@hf_linkz Thanks for the identification 👍🏻

0 0 0 0 0

View Details

Guido @DecodeSignals

5 years ago

4485 kHz and 10608 kHz - (to me) unid periodic signal. Synched every 1.8s followed by eight slots of 200ms. Fragments of voice, mic feedback and MFSK-8 (ALE-2G ?) could be seen in the slots. Any idea ? Recording: disk.yandex.com/d/wpqHhBdhnDeY…

0 3 10 0 0

View Details

Guido @DecodeSignals

5 years ago

@India_Papa_Golf That could be possible, thanks for the hint ! The next time they show up, we could try doing a TDoA check.

0 0 1 0 0

View Details

Guido @DecodeSignals

5 years ago

6668 kHz - Chinese mil / People's Liberation Army (PLA) with several 3-digit callsigns sending MIL-110A with HARRIS Citadel encryption. Recording: disk.yandex.com/d/6M4Fan0mtlvM…

2 5 20 0 1

View Details

Guido @DecodeSignals

5 years ago

@i56578_swl French Navy, also seen on 6828 kHz and some other frequencies the last days:

Guido @DecodeSignals

5 years ago

6828 kHz, 5437 kHz and other freqs (tonight) - ALE-2G calls 10CDGD, DGG01D and DGD01D followed by MIL-110A transmissions with KG-84 encryption. Any idea who it is ? Recording: disk.yandex.com/d/iA3Lh6e8BtaR…
